208A/C:
Technical Datasheet:
Basic Function | Range | Best Resolution | Basic Accuracy | |
208A | 208C | |||
AC Current | 4A | 0.001A | ±(3%+5) | ±(3%+5) |
40A | 0.01A | ±(2%+5) | ±(2%+5) | |
400A/.600A | 0.1A | ±(2%+5) | ±(2%+5) | |
AC Voltage | 4V/40V/400V/600V | 0.001V | ±(1.2%+5) | ±(1.2%+5) |
DC Voltage | 400mV/4V/40V/400V/600V | 0.1mV | ±(0.8%+5) | ±(0.8%+5) |
Resisitor | 400/4K/40K/400K/4M/40M | 0.1Ω | ±(1.2%+5) | ±(1.2%+5) |
Capacitance | 4nF/40nF/400nF/4uF/40uF/400uF/4mF | 0.001nF | ±(3%+5) | ±(3%+5) |
Temperature | -20°C~1000°C(-4°F~1832°F) | 1°C(1°F) | ——— | ±(3%+5) |
Frequency | 4Hz/40Hz/400Hz/4KHz | 0.001Hz | ——— | ±(0.5%+5) |
Special Function
Ture RMS | √ | √ | |
Backit | √ | √ | |
Illumination | √ | √ | |
Auto Ranging | Auto/Manual | √ | |
NCV | √ | √ | |
Diode Detector | 2v | √ | √ |
Continuity Buzzer | √ | √ | |
Low Battery Display | √ | √ | |
Data Hold | √ | √ | |
Auto Power-off | √ | √ | |
Overload Protection | √ | √ | |
Input Impedance | ≥10MΩ | √ | √ |
Sampling Frequency | 3 times/s | √ | √ |
Max Display | 4000 | √ | √ |
Clamp Open Diatance | 30mm | √ | √ |
Product Color | Iron-gray and orange | ||
Product N.W | about168g(Battery Excluded) | ||
LCD Size | 38.4*28.4mm | ||
Product Size | 190*71*30mm | ||
Color box Size | 214*110*40mm | ||
Battery | 2*1.5V 7# | ||
Standard Accessories | color box,handheld bag,English manual, battery,test lead | √ | |
color box,handheld bag,English manual, battery,test lead,tempereture probe | √ | ||
Quantity | 40pcs | ||
Carton Size | 450*435*240mm | ||
G.W | about15KG |

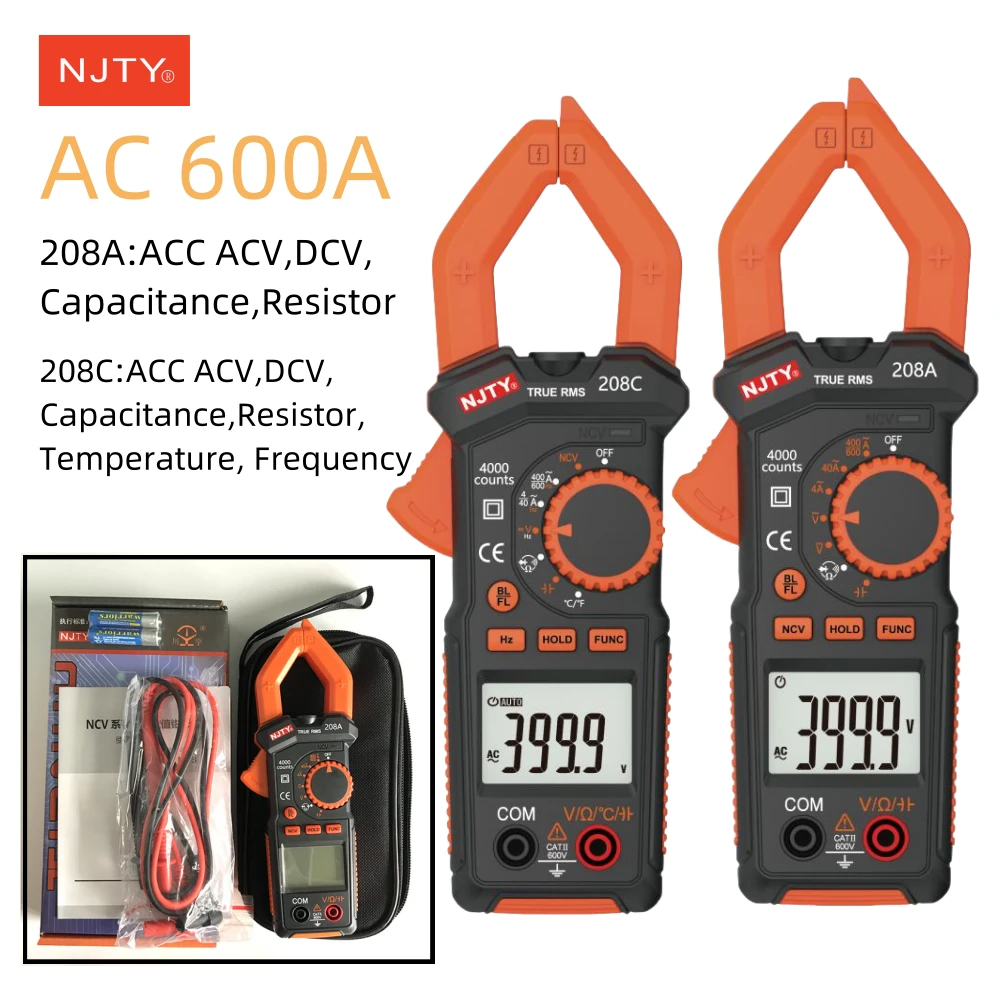

*208A/208C is a 3 3/4 4000 count clamp meter with exquisite appearance,stable and reliable performance.The full seriesare with true effective value(TRUE RMS)and NCV function.This product is an intelligent automatic shutdown greenproduct,and equipped with portable belt,easy to use.The 208C has the function of temperature and frequencymeasurement.
*Widely used in home,school,decoration,electrician,electronics,information,communication,petroleum,chemicaland maintenance industries.
208D :
Technical Datasheet:
Basical Function | Range | Best Resolution | Basic Accuracy |
208D | |||
AC Current | 60A/600A | 10mA/100mA | ±(2.5%+3) |
DC Current | 60A/600A | 10mA/100mA | ±(3%+3) |
AC Voltage | 6V/60V/600V | 1mV | ±(1.2%+10) |
DC Voltage | 600mV/6V/60V/600V | 0.1mV | ±(0.8%+5) |
LoZ | 600V | 0.1V | ±(2%+3) |
Resistor | 600/6k/60k/600k/6M/60M | 0.1Ω±(0.8%+5) | ±(1.2%+5) |
Frequency | 6KHz/60KHz/600KHz | 1Hz | ±(1.5%+5) |
Capacitance | 6nF/60nF/600nF/6uF/60uF | 0.01nF | ±(4%+5) |
600uF/6mF/100mF | |||
Temperature | -20℃~1000℃(-4℉~1832℉) | 1℃(1℉) | ±(1%+3) |
Duty Cycle | 0.1%~99.9% | 0.1% | Reading are for reference only |
Special Functions
Auto Ranging | √ | |
Ture RMS | √ | |
Backlit | √ | |
Illumination | √ | |
NCV | √ | |
Diode Detector | 3V | √ |
Continuity Buzzer | √ | |
Low Battery Display | √ | |
Data Hold | √ | |
Auto Power-off | √ | |
Over load Protection | √ | |
Input Impedance | ≥10MΩ | √ |
Sampling Frequency | 3 times/s | √ |
Max Display | 6000 | √ |
Clamp Open Distance | 30mm | √ |
General Characteristics
Product Color | Iron-gray and orange |
Product N.W | about168g(Battery Excluded) |
LCD Size | 38.4*28.4mm |
Product Size | 190*71*30mm |
Color box Size | 214*110*40mm |
Battery | 2*1.5V 7# |
Standard Accessories | color box,handheld bag,English manual, battery,test lead,tempereture probe |
Quantity | 40pcs |
Carton Size | 450*435*240mm |
G.W | about 15KG |

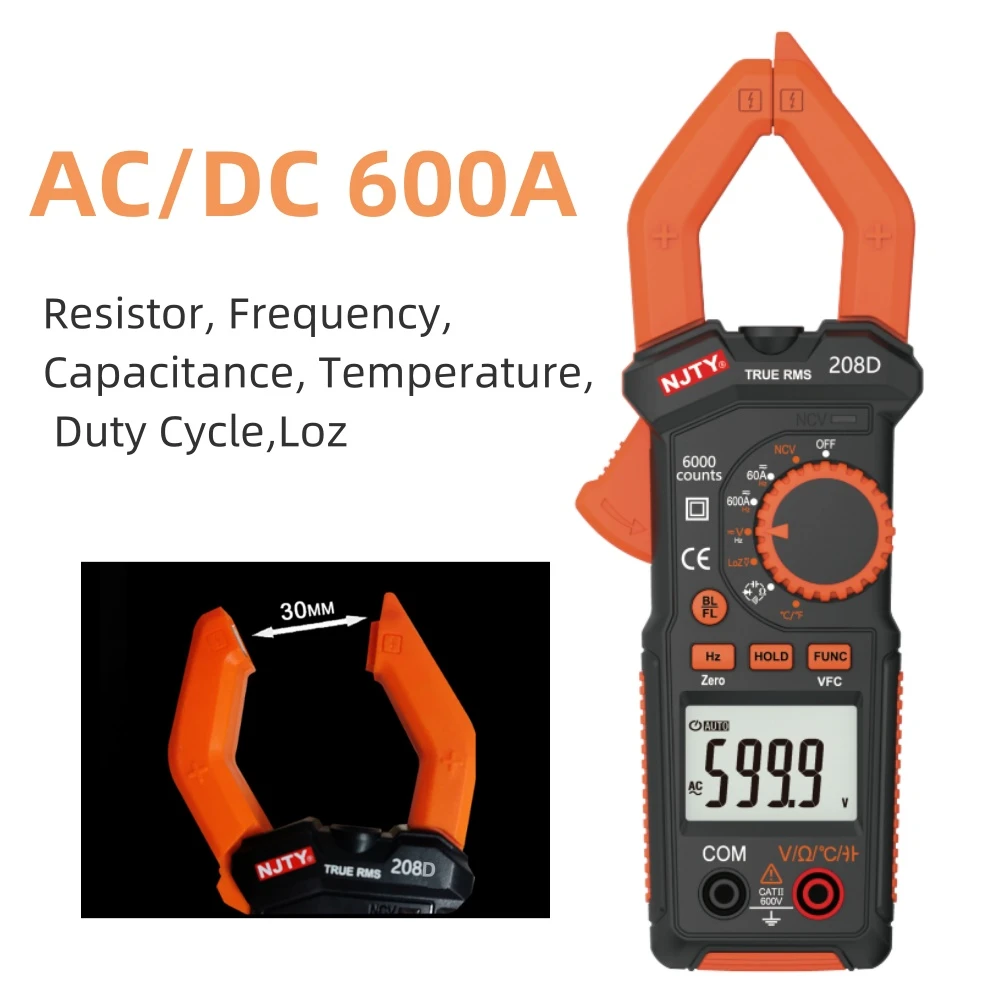

*208D is a 3 5/6 6000 meter with delicate appearance,stable and reliable performance,full series of true effectivevalue (TRUE RMS),non-contact (NCV)detection,automatic shutdown function.And equipped with a portable strap,easy to use. The 208D has the DC current (DCA),low impedance(Loz),temperature,frequency,and 100mF capacitance measurement function.
*Widely used in home,school,decoration,electrician,electronics,information,communication,petroleum,chemicaland maintenance industries.
208E/F:
Technical Datasheet:
Basic Function | Range | Resolution | Basic Accuracy | Remarks | |
208E | 208F | ||||
AC Current | 6A/60A/600A | 0.001A | ±(2.5%+5) | ——— | Min Imput Current:0.03A Frequency:45Hz-200Hz |
60A/600A | 0.01A | ——— | ±(2.5%+5) | Min Imput Current:0.2A Frequency:45Hz-1KHz | |
AC Voltage | 6V/60V600V | 0.001V | ±(1.2%+5) | ±(2.5%+5) | Min Input Voltage:0.5v-1v Max Input Voltage:600v Resistor Impedance:10M,Frequancy response:45Hz-200Hz |
DC Voltage | 6V/60V600V | 0.001V | ±(0.8%+5) | ±(0.8%+5) | |
Resistor | 6k/60k/600k/6M/10M | 1Ω | ±(1%+5) | ——— | Over load Protaction:600V AC/DC |
600/6k/60k/600k/6M/60M | 0.1Ω | ——— | ±(1%+5) | ||
Frequency | 10Hz-1KHz(vpp≥1v) | 1Hz | ±(1%+5) | ——— | Over Vpp1v |
5Hz-2KHz(vpp≥1v) | 0.1Hz | ——— | ±(1%+5) | Over Vpp1v | |
Capacitance | 600uF/6000uF | 0.1uF | ±(4%+5) | ——— | Over load Protaction:250V AC/DC |
6nF/60nF/600nF/6uF/60uF/600uF/ 6mF/60mF/100mF | 0.001nF | ——— | ±(4%+5) | ||
Temperature | -20℃~1300℃(-4℉~2372℉) | 1℃(1℉) | ——— | ±(1%+3) | |
Duty Cycle | 0.1%~99.9% | 0.1% | ——— | Reading are for reference only | |
Max Display | 6000 | √ | √ | ||
Dispaly | Dual | Singal | |||
Auto Power-off | √ | √ | |||
Backit/illumination | √ | √ | |||
Diode Detector | √ | √ | Voltage drop 2.8V | ||
Continuity Buzzer | <50Ω | √ | √ | Over load protaction:600V AC/DC | |
NCV | √ | √ | |||
Ture RMS(ACA) | 45Hz-200Hz | 45Hz-1KHz | |||
Ture RMS(ACV) | 45Hz-200Hz | 45Hz-2KHz | |||
Low Battery Diaplay | √ | √ | |||
Capacitor diode overvoltage alarm | √ | Over load protaction:250V AC/DC |
Special Functions
Auto Ranging | √ | √ | |
Data Hold | √ | √ | |
Auto Power-off | √ | √ | |
Over load Protection | √ | √ | |
Input Impedance | ≥10MΩ | √ | v |
Sampling Frequency | 3 times/s | √ | √ |
Clamp Open Distance | 30mm | √ | √ |
General Characteristics
Product Color | Iron-gray and orange | ||
Product N.W | about168g(Battery Excluded) | ||
LCD Size | 38.4*28.4mm | ||
Product Size | 190*71*30mm | ||
Color box Size | 214*110*40mm | ||
Battery | 2*1.5V 7# | ||
Standard Accessories | color box,handheld bag,English manual, battery,test lead | √ | |
color box,handheld bag,English manual, battery,test lead,tempereture probe | √ | ||
Quantity | 40pcs | ||
Carton Size | 450*435*240mm | ||
G.W | about 15KG |

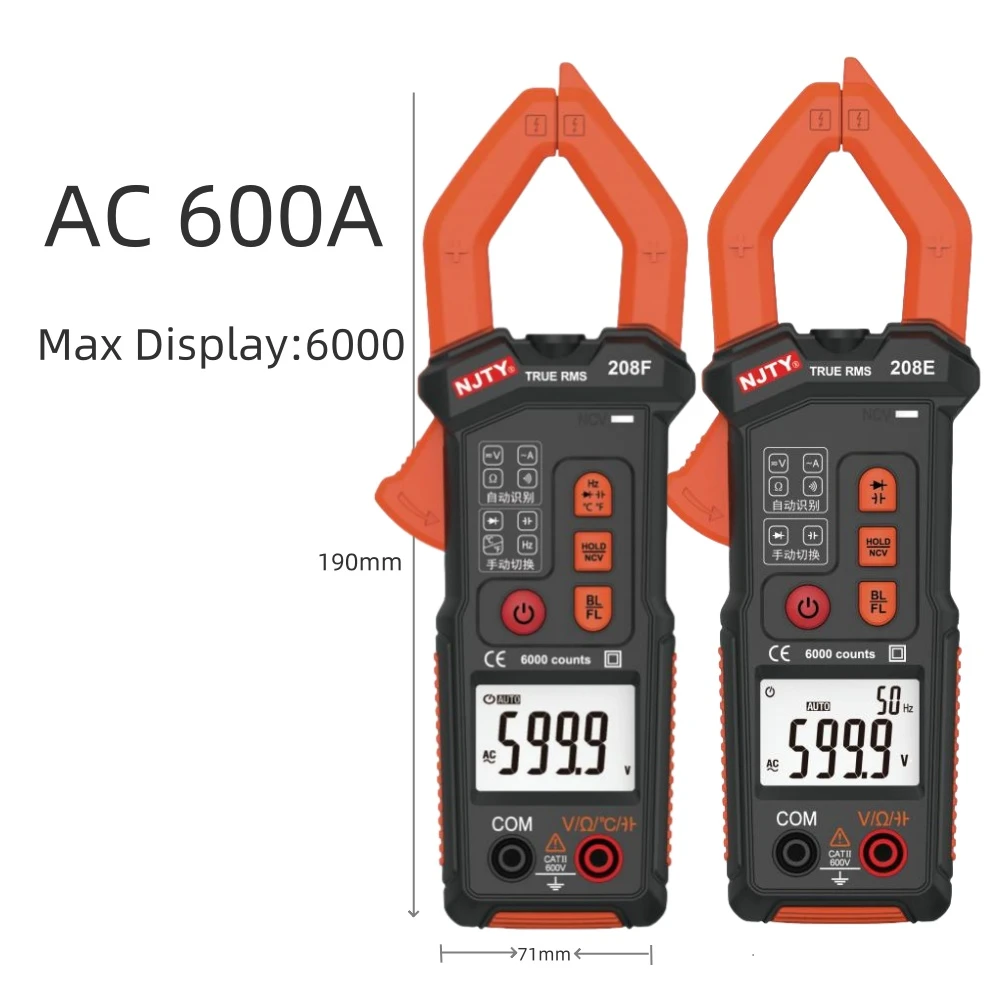

*208E/208F is a 3 5/6 6000 meter with delicate appearance,stable and reliable performance,full series of true effectivevalue (TRUE RMS),non-contact (NCV)detection,automatic shutdown function.208E F intelligent clamp meter,can automatically identify:AC current(ACA),resistance,AC-DC voltage,buzz,etc
*Widely used in home,school,decoration,electrician,electronics,information,communication,petroleum,chemicaland maintenance industries.
