3266TA/TB Description:
Technical Datasheet:
Auto Ranging | √ | √ | |
| Ture RMS | √ | √ | |
| Backlit/Illumination | √ | √ | |
| NCV | √ | √ | |
| Diode Detector | Open Circuit Voltage 1.999V | √ | √ |
| Continuity Buzzer | √ | √ | |
| Low Battery Display | √ | √ | |
| Data Hold | √ | √ | |
| Max | √ | √ | |
| Auto Power-off | √ | √ | |
| Over load Protection | √ | √ | |
| Input Impedance | ≥10MΩ | √ | √ |
| Sampling Frequency | 3 times/s | √ | √ |
Max Display | 1999 | √ | √ |
| Clamp Open Distance | 25mm | √ | √ |
| Product Color | Iron-gray and orange | ||
| Product N.W | about150g | ||
| LCD Size | 38.4*28.4mm | ||
| Product Size | 183*47*25mm | ||
| Color box Size | 214*110*40mm | ||
| Battery | 2*1.5V 7# | ||
| Standard Accessories | color box,handheld bag,English manual, battery,test lead | √ | |
| color box,handheld bag,English manual, battery,test lead,tempereture probe | √ | ||
| Quantity | 40pcs | ||
| Carton Size | 450*435*240mm | ||
| G.W | about 14KG |
*3266TA/3266TB are auto-ranging clamp meters with 33/4 4000 counts,non-contact (NCV)detection function isequipped.The performance is stable and reliable.This product is a green and environmentally friendly product with intelligent automatic shutdown and is equipped with NCV function.The 3266TB is with tenperature measurementfunction.
*Widely used in home,school,decoration,electrician,electronics,information,communication,petroleum,chemicaland maintenance industries.
3266TC/TD Description:
| Basical Function | Range | Best Resolution | Basic Accuracy | |
| 3266TC | 3266TD | |||
| AC Current | 40A/600A | 10mA | ±(2.5%+5) | ±(2.5%+5) |
| DC Voltage | 400mV/4V/40V/400V/600V | 0.1mV | ±(0.8%+ 5) | ±(0.8%+5) |
| AC Voltage | 4V/40V/400V/600V | 0.1mV | ±(1.2%+5) | ±(1.2%+5) |
| Resistor | 400/4k/40k/400k/4M/40M | 0.1Ω | ±(1.2%+5) | ±(1.2%+5) |
| Frequency | 4Hz/40Hz/400Hz/4KHz 40KHz/400KHz/4MHz/10MHz | 0.001Hz | ±(0.5%+5) | ±(0.5%+5) |
| Capacitance | 4nF/40nF/400nF/4uF/40uF/400uF/4mF | 1pF | ±(3%+5) | |
| Temperature | -20℃~1000℃ | 1℃ | ±(3%+5) | |
| -4℉~1832℉ | 1℉ | |||
Special Functions
Auto Ranging | √ | √ | |
| Ture RMS | √ | √ | |

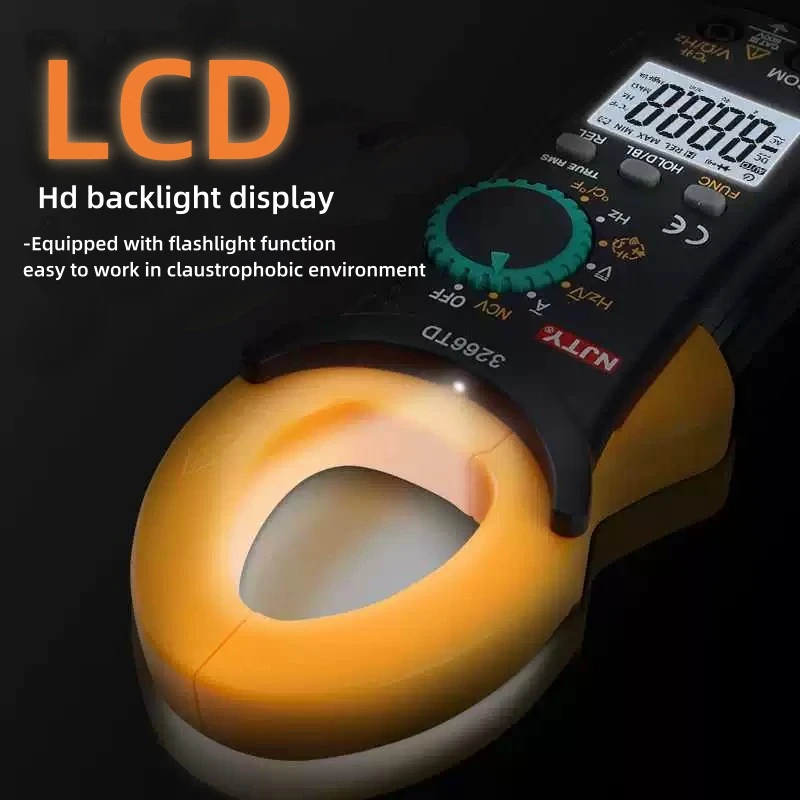

| Backlit/Illumination | √ | √ | |

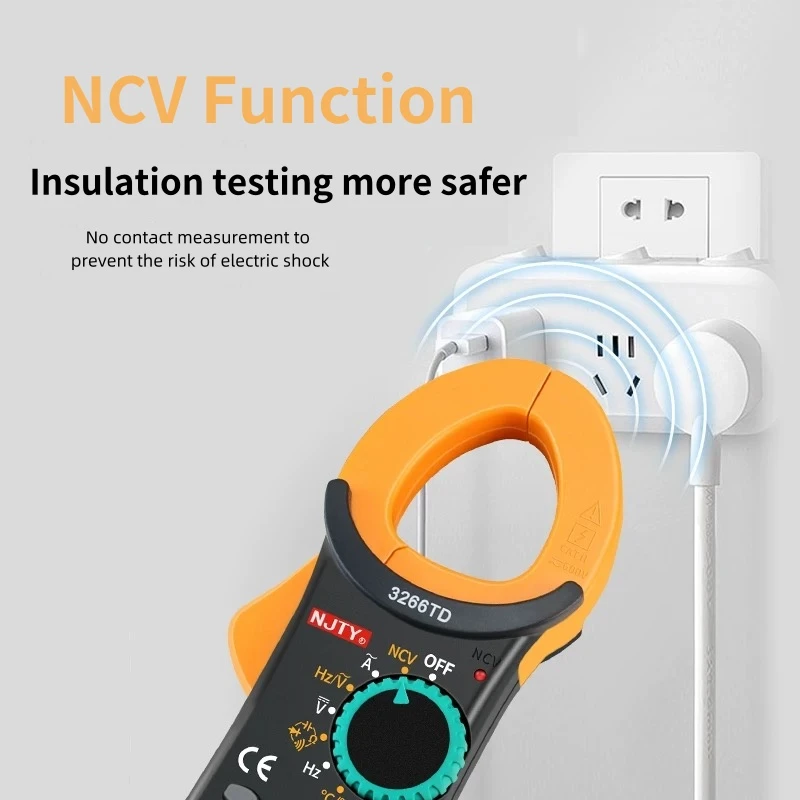

| NCV | √ | √ | |
| Diode Detector | Open Circuit Voltage 1.999V | √ | √ |
| Continuity Buzzer | √ | √ | |
| Low Battery Display | √ | √ | |
| Data Hold | √ | √ | |
| Max | √ | √ | |
| Auto Power-off | √ | √ | |
| Over load Protection | √ | √ | |
| Input Impedance | ≥10MΩ | √ | √ |
| Sampling Frequency | 3 times/s | √ | √ |
Max Display | 3999 | √ | √ |

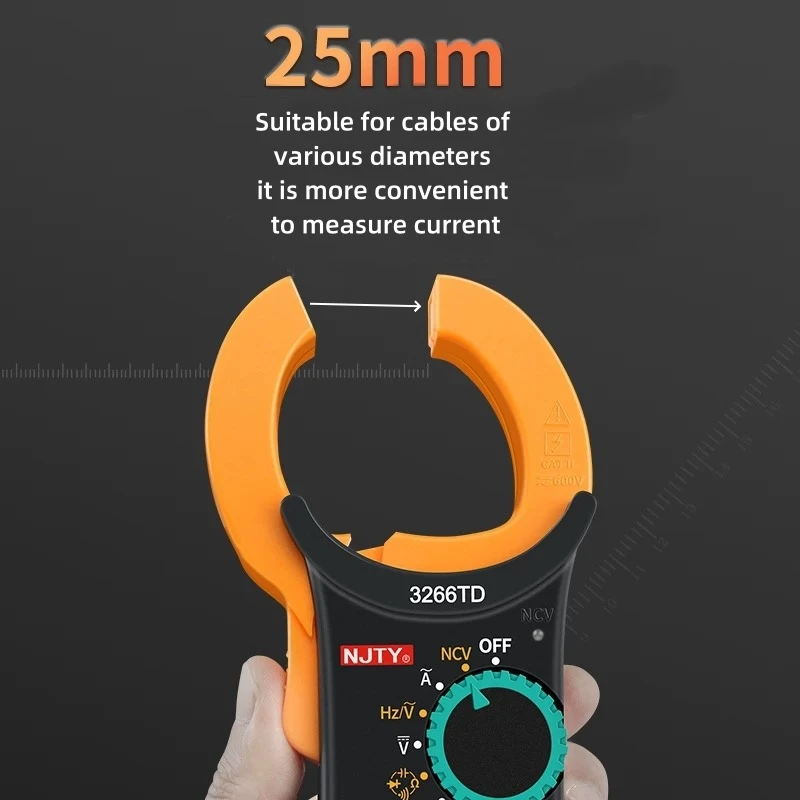

| Clamp Open Distance | 25mm | √ | √ |
General Characteristics
| Product Color | Iron-gray and orange | ||
| Product N.W | about150g | ||
| LCD Size | 38.4*28.4mm | ||
| Product Size | 183*47*25mm | ||
| Color box Size | 214*110*40mm | ||
| Battery | 2*1.5V 7# | ||
| Standard Accessories | color box,handheld bag,English manual, battery,test lead | √ | |
| color box,handheld bag,English manual, battery,test lead,tempereture probe | √ | ||
| Quantity | 40pcs | ||
| Carton Size | 450*435*240mm | ||
| G.W | about 14KG |

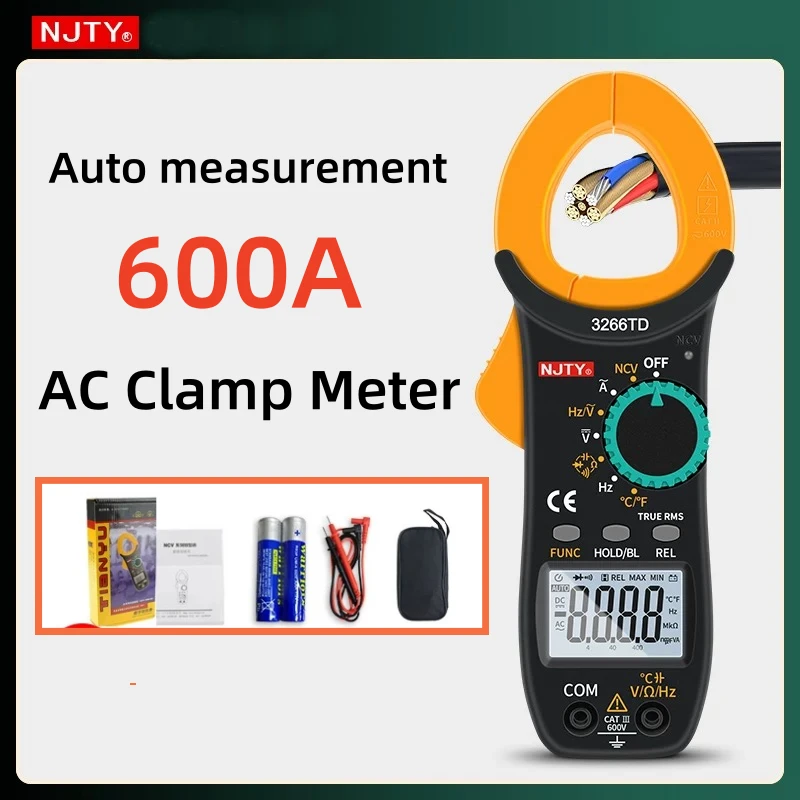

3266TC/3266TD is an auto-ranging 1000A clamp meter with 33/4 6000 counts,non-contact (NCV)detectionfunction is equipped.This product has temperature,frequency,capacitance measurement functions.It is praised by themarket as a comprehensive special instrument integrating clamp meter,multimeter,thermometer,frequency meter,capacitance pen and non-contact electric test pen.They are super star products that export with bulk qty.
*Widely used in home,school,decoration,electrician,electronics,information,communication,petroleum,chemicaland maintenance industries.
