T02A（Non-voice broadcast）:
Technical Datasheet:
| Voltage detection range | 12-1000v,50/60Hz |
| Boot key | Have |
| Shutdown key | Be off after 5 mints without operation |
| Measurement alarm | Yellow light is on when the signal is weak.and red light is on when the signal is strong.The buzzcue also becomes faster or slower with signal intensity |
| Illumination/red light indicator | Tap tp turn o the lighting, and then tap to turn off the lighting.Press and hold for 2s to turn on the red indicator |
| Sensitivity regulation | Have |
| Sensitivity Settings | Have |
| Fire discrimination | The neutral line or weak eledtric field can only trigger the yellow light to be on,and only the live line can tigger the red light |
T02B（Voice broadcast）:
Technical Datasheet:
| Voltage detection range | 12-1000v,50/60Hz |
| Boot key | Have |
| Shutdown key | Be off after 5 mints without operation |
| Measurement alarm | Yellow light is on when the signal is weak.and red light is on when the signal is strong.The buzzcue also becomes faster or slower with signal intensity |
| Voice reading | Have |
| Illumination/red light indicator | Tap tp turn o the lighting, and then tap to turn off the lighting.Press and hold for 2s to turn on the red indicator |
| Sensitivity regulation | Have |
| Sensitivity Settings | Have |
| Fire discrimination | The neutral line or weak eledtric field can only trigger the yellow light to be on,and only the live line can tigger the red light |
General Characteristics
| TO2A/B | |
| Product Color | Iron-gray and orange red |
| Product N.W | about 40g |
| Product Size | 165*24.5*28.1mm |
| Color box Size | 167*35*30mm |
| Battery | 2*1.5V AAA Battery |
| Standard Accessories | color box,English manual, battery |
| With color box weight | about 67.2g |
| Quantity | 100pcs |
| Carton Size | 360*335*210mm |
| N.G | about 6.8KG |
| G.W | about 7.6KG |
*T02A is a smart test pen,which can sense the electric field at a long distance and distinguish the live/neutral line at aclose distance.

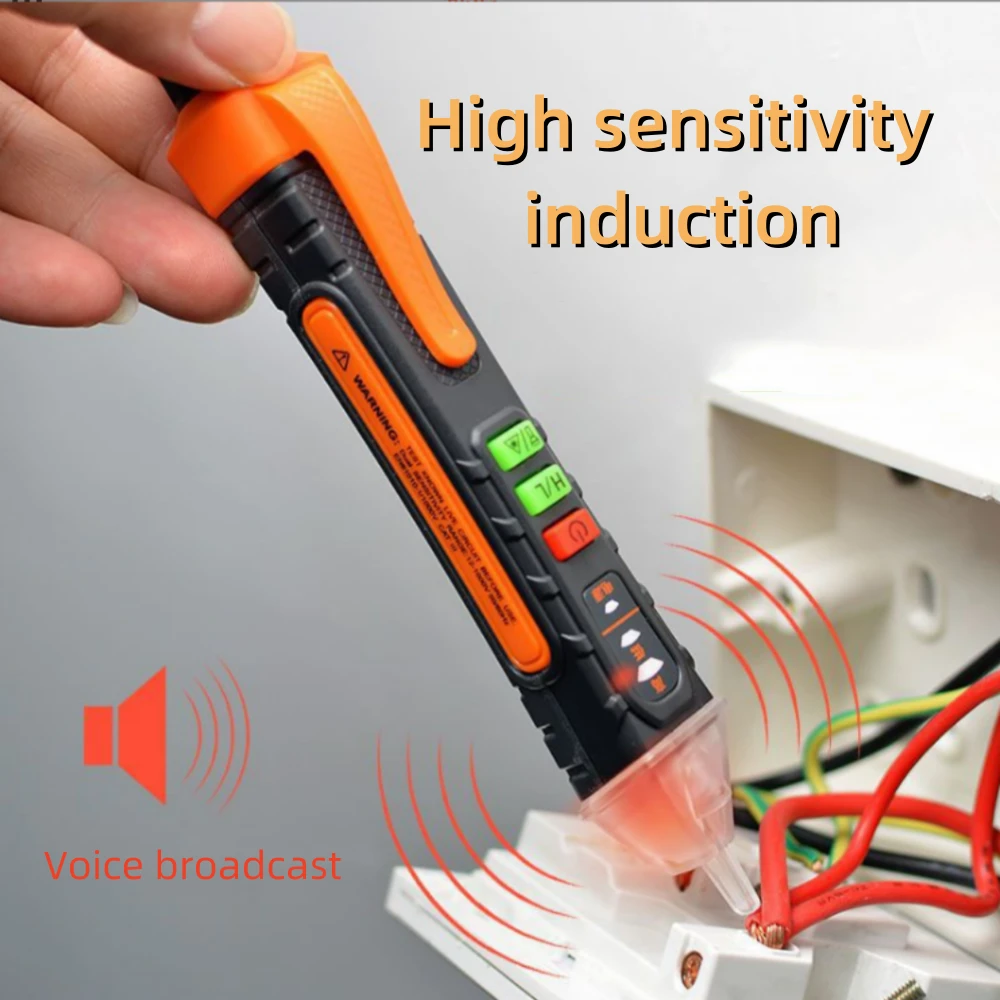

*T02B is an intelligent voice measuring pen,which can both sense the long-distance electric field and distinguish thelive/neutral line at close distance.
*The default low sensitivity test state is turned on,and you can switch between high and low sensitivity by pressing thesensitivity switch.
Widely used in home decoration,engineering installation and maintenance industries.
