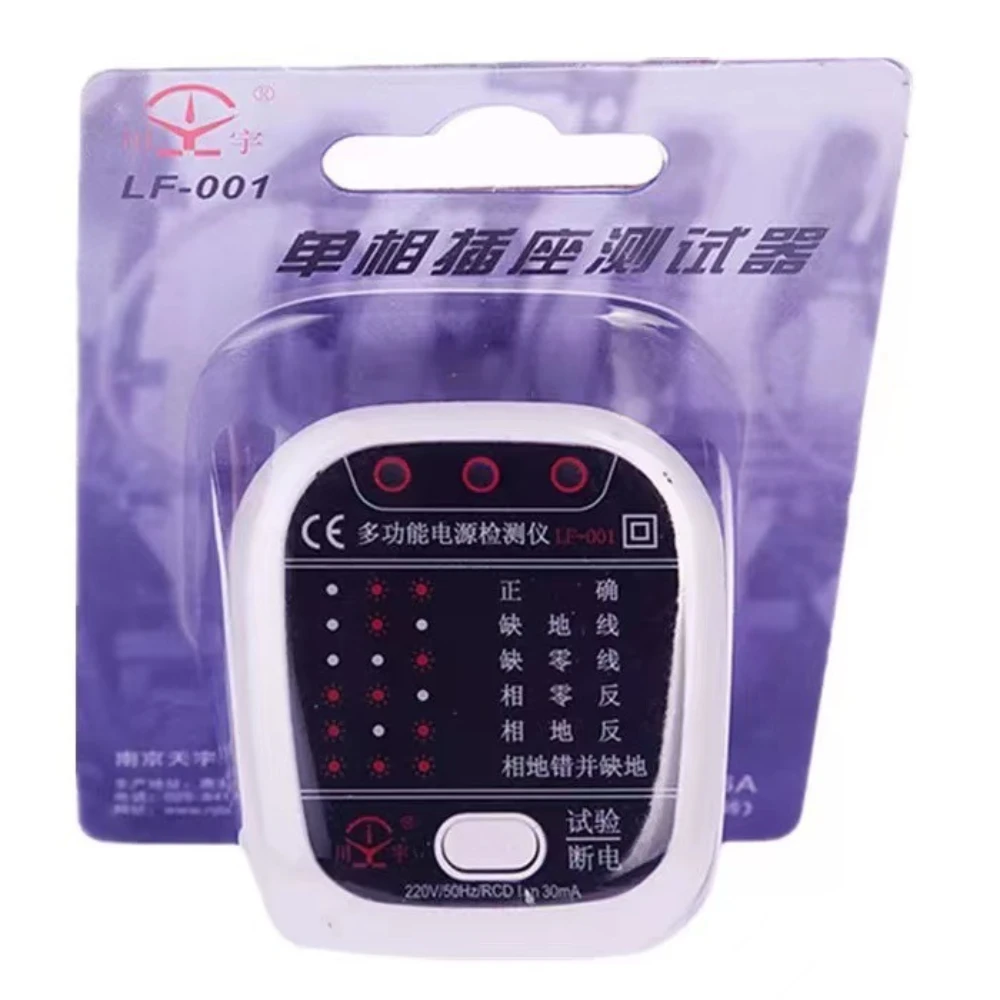

LF001/LF002 Socket Tester:
Technical Datasheet:
| LF001 | LF002 | ||
| Voltage detection range | 220V AC(50~60Hz) | √ | √ |
| Measuring instructions | Red light on | √ | √ |
| Leakage protection test | Test whether the leakage protector is working properly | √ | √ |
| Adapt to the panel | The 10A/16A is switchable | 10A | |
| General Characteristics | |||
| Product color | Bright White | Bright White | |
| Product N.W | 27g | 42g | |
| Product Size | 51*45.4*45mm | 59*56.5*56mm | |
| Standard Accessories | color card,plastic suction | color card,plastic suction | |
| Including package weight | about 42g | about 70g | |
| Quantity | 100 | 100 | |
| Outer carton Size | 460*315*185mm | 350*185*120mm | |
| N.W | 4.25kg | 7kg | |
| G.W | 4.75kg | 7.4kg | |
*LF001/LF002 is specially designed to detect whether the wiring of the wall panel socket is correct.It can not only correctly judge whether the three wiring of the panel socket is connected correctly,but also test whether the incoming leakage protectorcan be started normally.(air switch with no reaction)
*Widely used in home decoration,engineering installation and maintenance industries
