Technical Datasheet:
| Quantitative limits | Sensitivity and voltage drop | Accuracy | Error representative method | |
| DC Current | 0-0.05mA-0.5mA-5mA-50mA-500mA | 0.25V | 2.5 | Measurement as a percentage of market value |
| 10A(No Wire Protection) | 5 | |||
| DC Voltage | 0-0.25V-1V-2.5V-10V-50V | 20kΩ | 2.5 | |
| 250V-500V-1000V-2500V | 9kΩ | |||
| AC Voltage | 0-10V-50V-250V-500V-1000V-2500V | 5 | ||
| DC Resistor | R×1 R×10 R×100 R×1k R×10k R×100k | Central Value 16.5 | 10 | |
| Buzzer on or off | The buzzer works < 50Ω | |||
| LED detection | <10V stabilivolt detection current DC 5mA(only47L type) | |||
| Cystral tube DC magnification hFE | R×10hFE 0~1000 | |||
| Infrared remote control signal detection | Vertical angle ±15° Distance 1-30cm | Red light emitting tube indicates(lit up) | ||

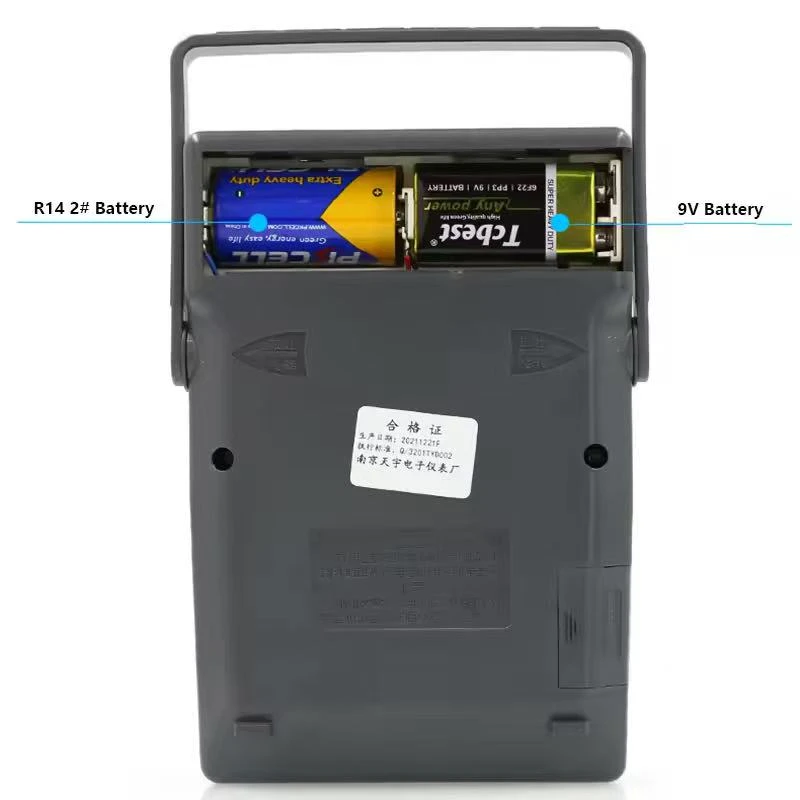

| Battery Power Measurement | 1.2V/1.5V/2V/3V/3.6V | RL=8Ω-12Ω | ||
| Stabdard resistor boxes | 0.025-0.5-5-50-500-5k-20k-50k-200k-1M-2.25M-4.5M-9M-22.5M | ±1.5% | ||

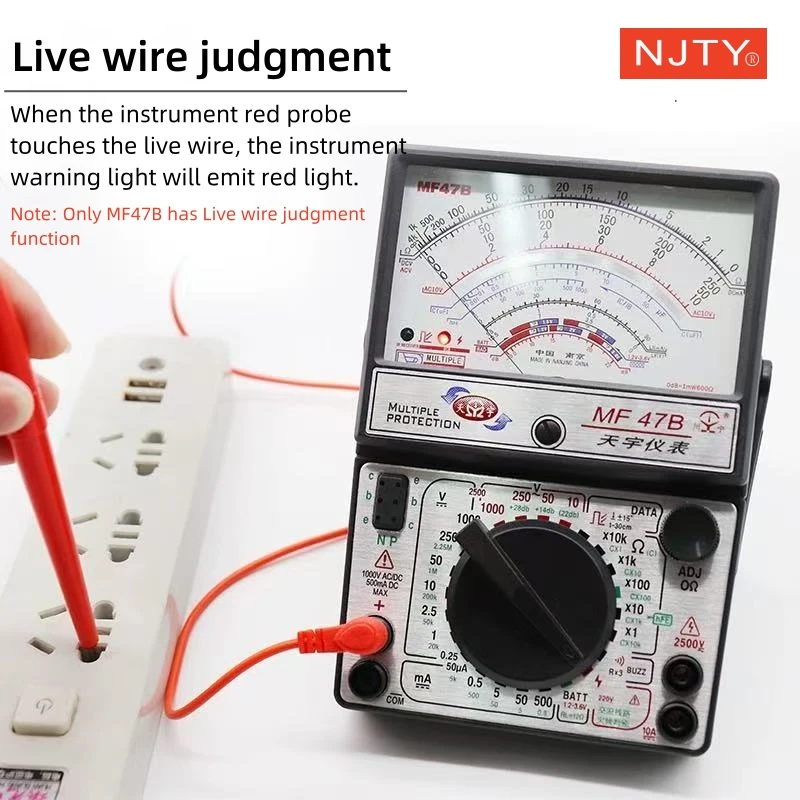

| Electrometric pendi | Red LED indicator(lit,220V AC detection)(type47B only) | |||
| Size | 165*112*49mm | |||
