T-003 Socket Tester:
Technical Datasheet:
| Voltage detection range | 90~250V/45~65Hz |
| Measuring instructions | LCD display wiring status |
| Leakage protection test | Test whether the leakage protector is working properly |
| Machine working current | <3mA(No-RCD test status) |
| Measure voltage accuracy | ±(2%+5) |
| RCD current | >30mA(220V);>10mA(110V) |
| RCD working voltage | 220V±20V or 110V±20V |
| General Characteristics | |
| Product color | White/Black |
| Product N.W | 75g |
| Product Size | 68*60*65mm |
| Standard Accessories | Packing Carton,English Manual |
| Individual carton size | 73*72*64mm |
| Including package weight | about 96g |
| Quantity | 80 |
| Outer carton Size | 395*285*320mm |
| N.W | about 7.5KG |
| G.W | about 8.5KG |

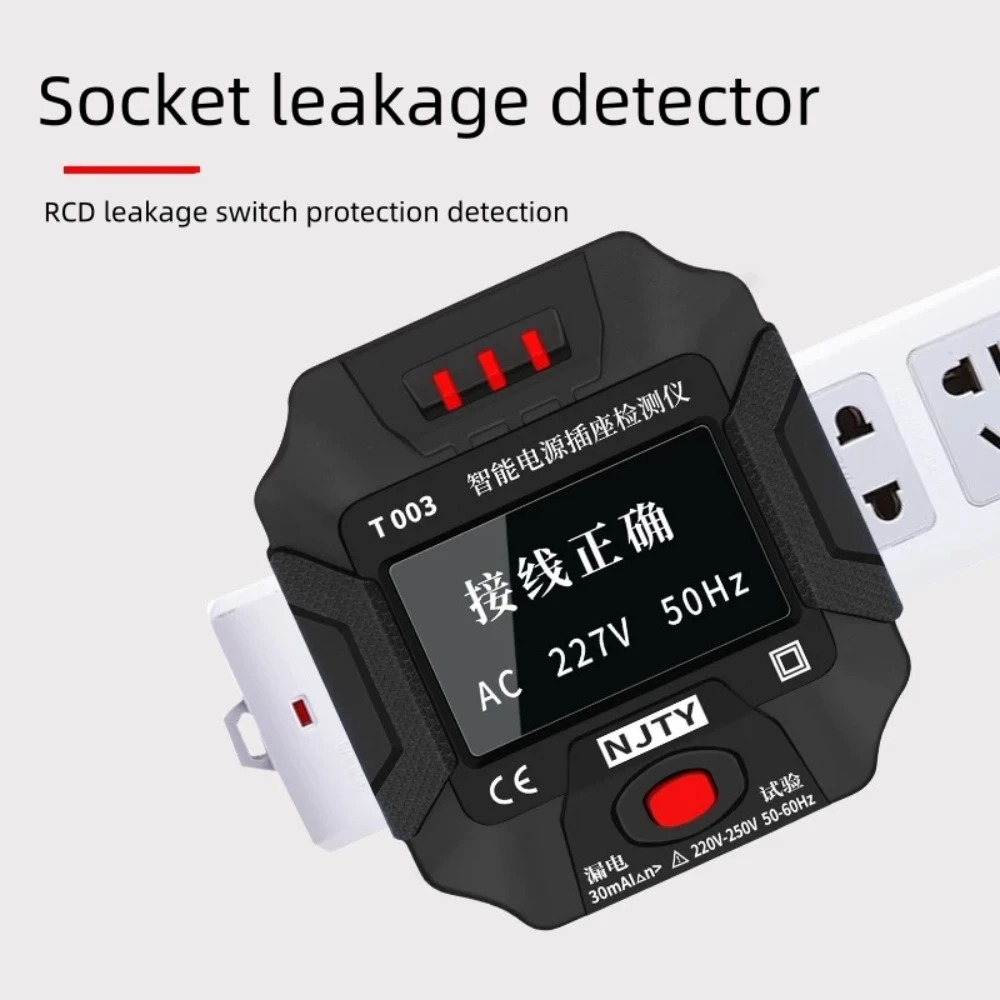

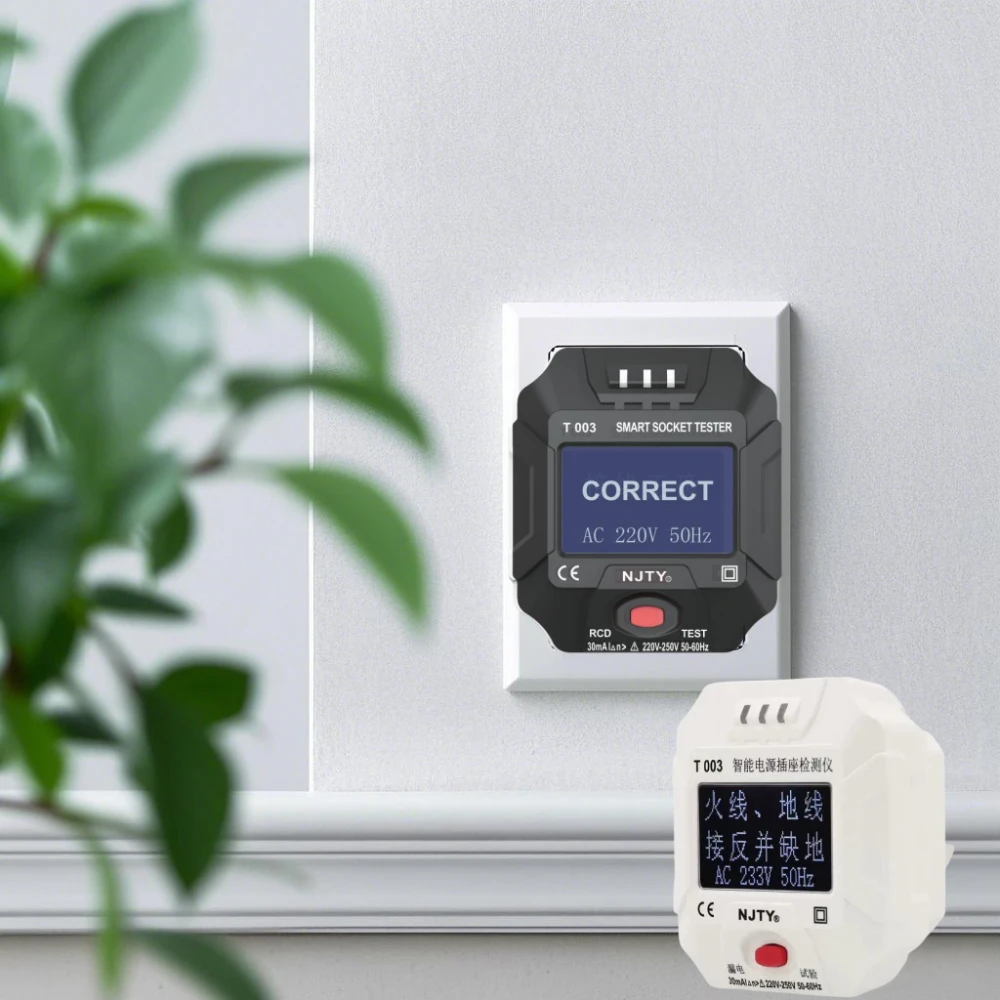

*T003 is specially designed to detect whether the wiring of the wall panel socket is correct.It can not only correctly judgewhether the three wiring of the panel socket is connected correctly,but also test whether the incoming leakage protectorcan be started normally.(air switch with no reaction)
*Widely used in home decoration,engineering installation and maintenance industries
