T21G:
Technical Datasheet:
| Function | Range | Best Resolution | Basic Accuracy | Remarks |
| DC Voltage | 1-600V | 0.001V-0.1V | ±(0.8%+5) | Min Input Voltage:1V Max Input Voltage:600V Imput Impedance:10M |
| AC Voltage | 1-600V(45Hz-2KHz) | 0.001V-0.1V | ±(1%+5) | Min Input Voltage:1V Max Input Voltage:600V Imput Impedance:10M |
| Resisitor | 0.1Ω-60MΩ | 0.1Ω-0.01MΩ | ±(1%+5) | Overload Protection 600V AC/DC |
| Current | 0.050A-10A | 0.001A | ±(2%+5) | 10A Fuse Protection |
| Temperature | -50°C-1300°C(-58°F-2372°F) | 1°C/°F | ±(3%+5) | Overload Protection 250V AC/DC |
| Capacitance | 0.001nF~100mF | 0.001nF~0.1mF | ±(4%+5) | Overload Protection 250V AC/DC |
| Frequency | 10Hz-2000Hz | 0.01Hz-0.001KHz | ±(2%+5) | Vpp≥1V |
| Max Display | 6000 | |||
| Auto Power-off | √ | Be off after 5 mins without operation | ||
| Backlit | √ | Auto Shutdown after 30 seconds delay | ||
| Illumination | √ | Auto Shutdown after 30 seconds delay | ||
| Diode Detecor | √ | Voltage Drop 3V Overload Protection 250V AC/DC | ||
| Continuity Buzzer | Internal resistance less than 50Ω | Overload Protection 600V AC/DC | ||
| Buzzer indicator | √ | Voltage Drop 3V Overload Protection 250V AC/DC | ||
| NCV | √ | “—“corresponds to the change of strength | ||
| NCV indicator | √ | |||
| Low Voltage display | √ | “—“corresponds to the change of strength | ||
| Livewire identification | √ | 45Hz-2KHz | ||
| Ture RMS | √ | |||
| Low Battery Display | √ | |||
| General Characteristics | ||||
| Product color | Iron-gray and Orange Red | |||
| Product N.W | about 220g | |||
| LCD Size | 50*28mm | |||
| Product Size | 147*78*45mm | |||
| Individual carton size | 160*105*55mm | |||

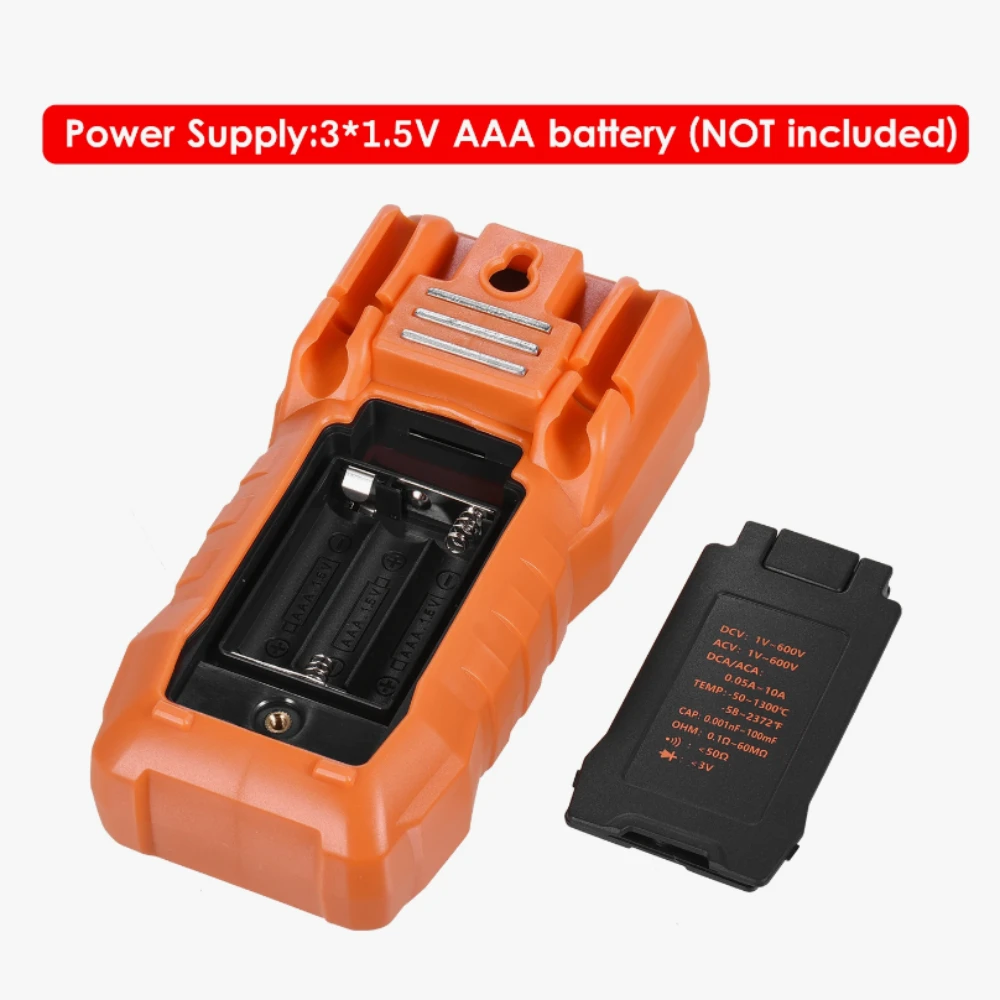

| Battery | 3*1.5V(7#) | |||
| Standard Accessories | Packing Carton,English Manual,Battery,Test Lead | |||
| Quantity | 48pcs | |||
| Outer Carton Size | 480*350*450mm | |||
| G.W | about 18KG | |||

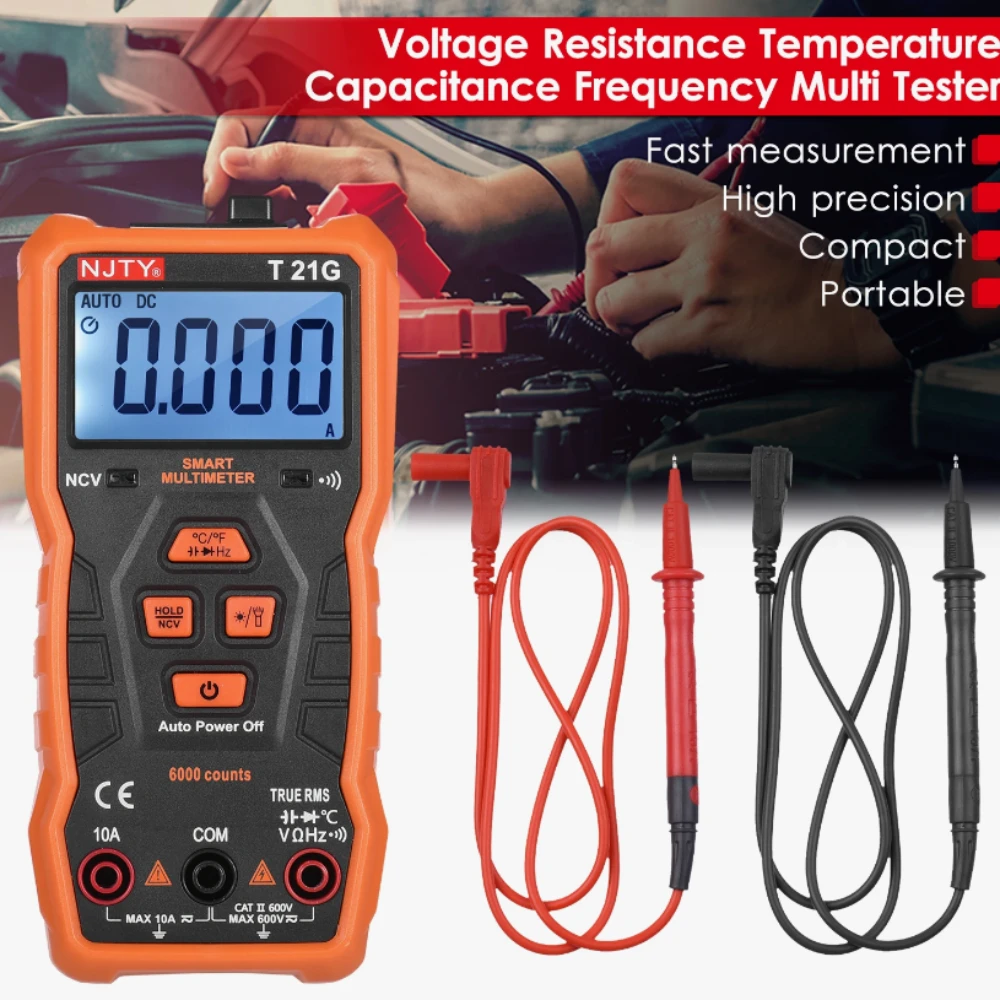

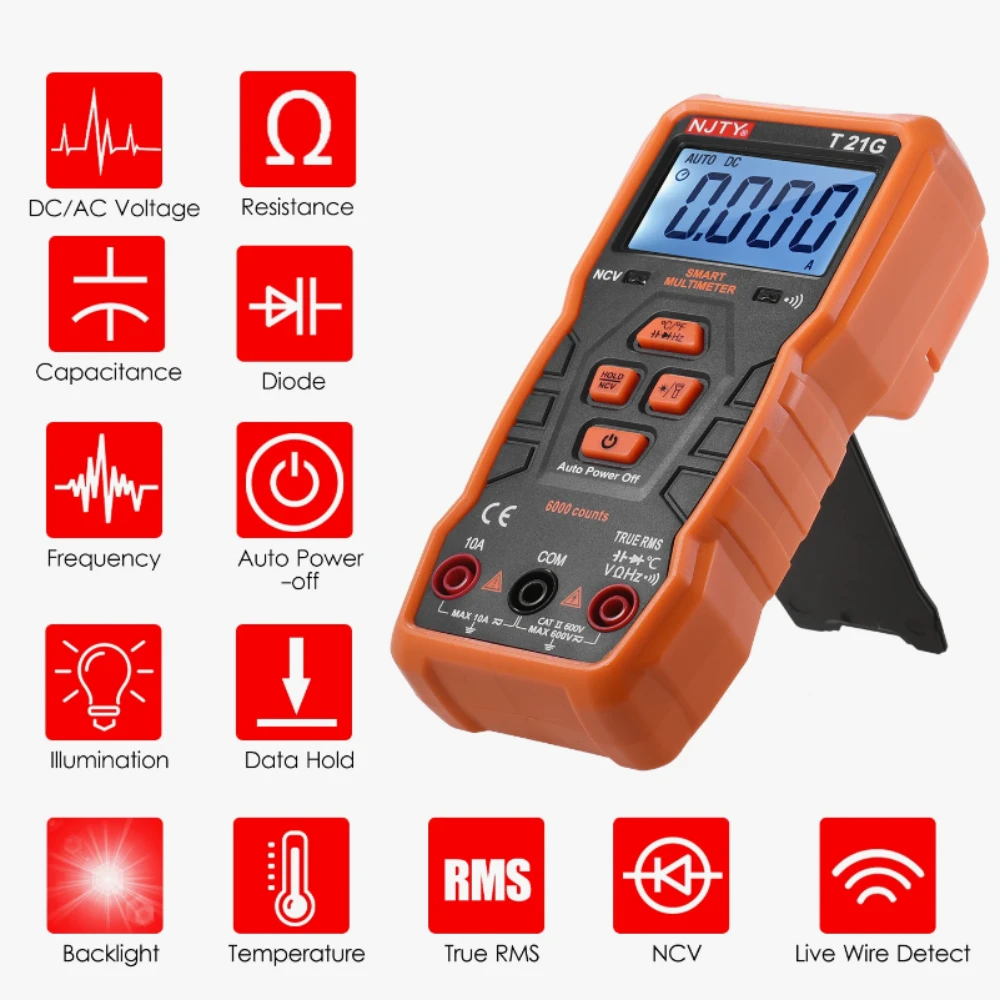

*T21G is a portable smart meter that can identify DC voltage,AC voltage,resistance,on-offbeep,current,etc.It can automatically switch to the corresponding range.With the powerful
functions,even the ordinary users do not need professional physical knowledge to easily measurevarious electrical parameters.

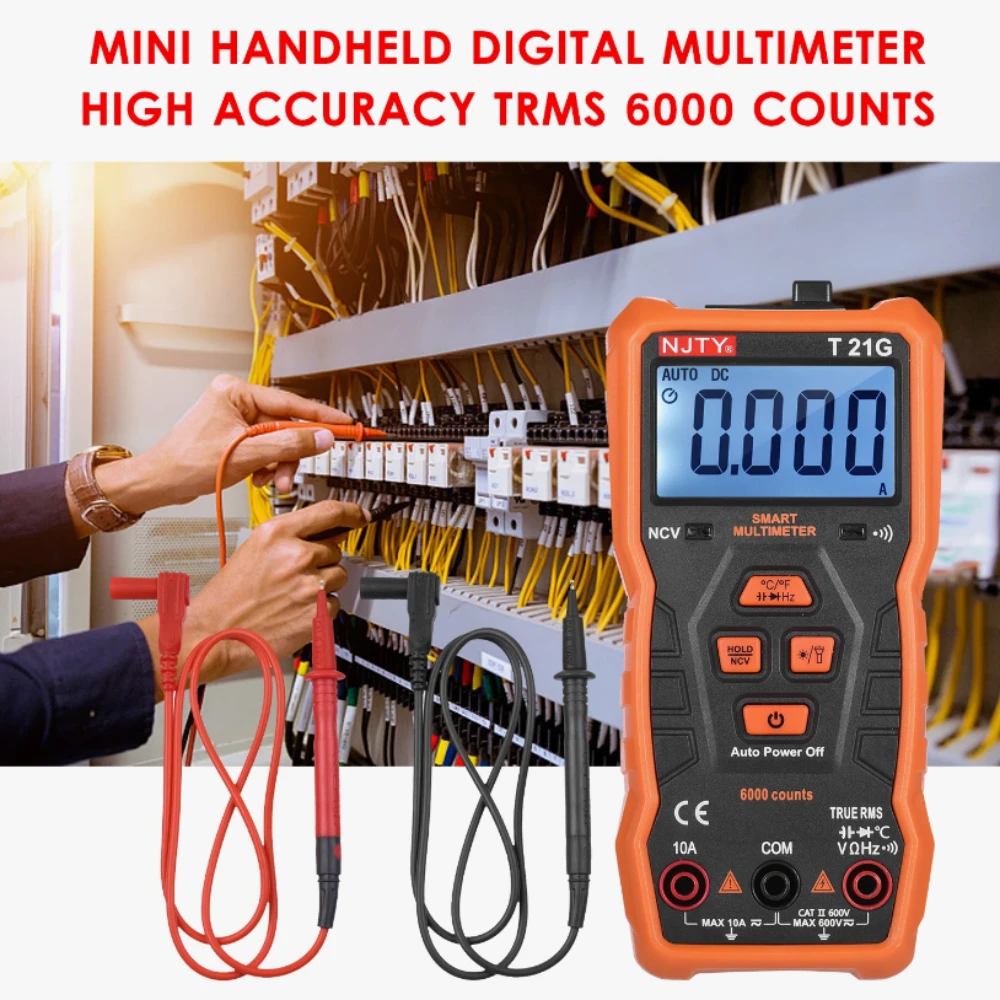

Large-screen LCD display,6000 display makes the reading more accurate.
*Widely used in home,school,decoration,electrician,electronics,information,communication,petroleum,chemical and maintenance industries.
