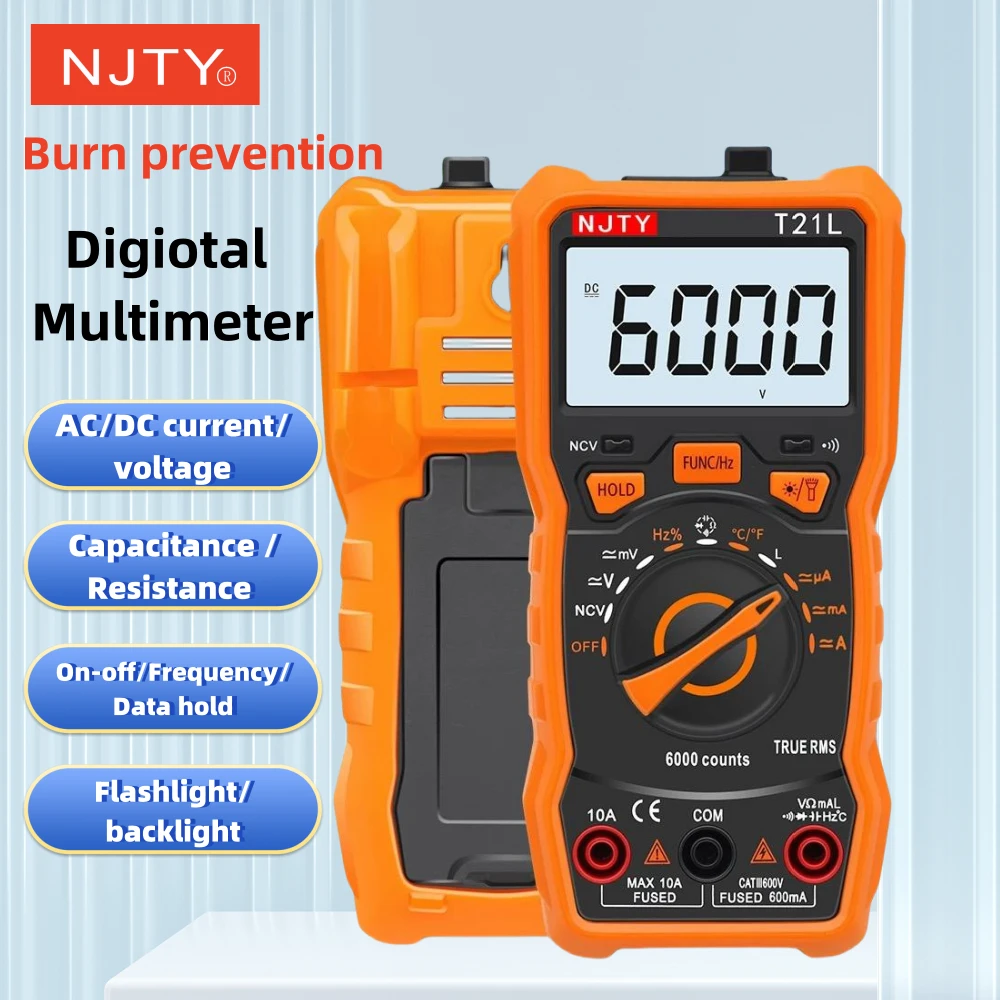

T21L:
Technical Datasheet:
| Function | Range | Best Resolution | Basic Accuracy |
| DC Voltage | 60mV/600V/6V/60V/600V | 0.1V | ±(0.5%+5) |
| AC Voltage | 60mV/600V/6V/60V/600V | 0.1V | ±(0.4%+5) |
| DC Current | 600uA/6000uA/60mA/600mA | 0.1mA | ±(1.2%+5) |
| 6A/10A | 0.01A | ±(3%+5) | |
| AC Current | 600uA/6000uA/60mA/600mA | 0.1mA | ±(1.2%+5) |
| 6A/10A | 0.01A | ±(3%+5) | |
| Resistor | 600Ω/6KΩ/60KΩ/6MΩ/60MΩ | 0.01MΩ | ±(0.8%+5) |
| Frequency | 9Hz/99Hz/999Hz/9KHz/99KHz/999KHz/9MHz | 0.001MHz | ±(1.5%+5) |
| Capacitance | 600pF/60nF/600nF/60uF/600uF/60mF/100mF | 0.1mF | ±(4%+5) |

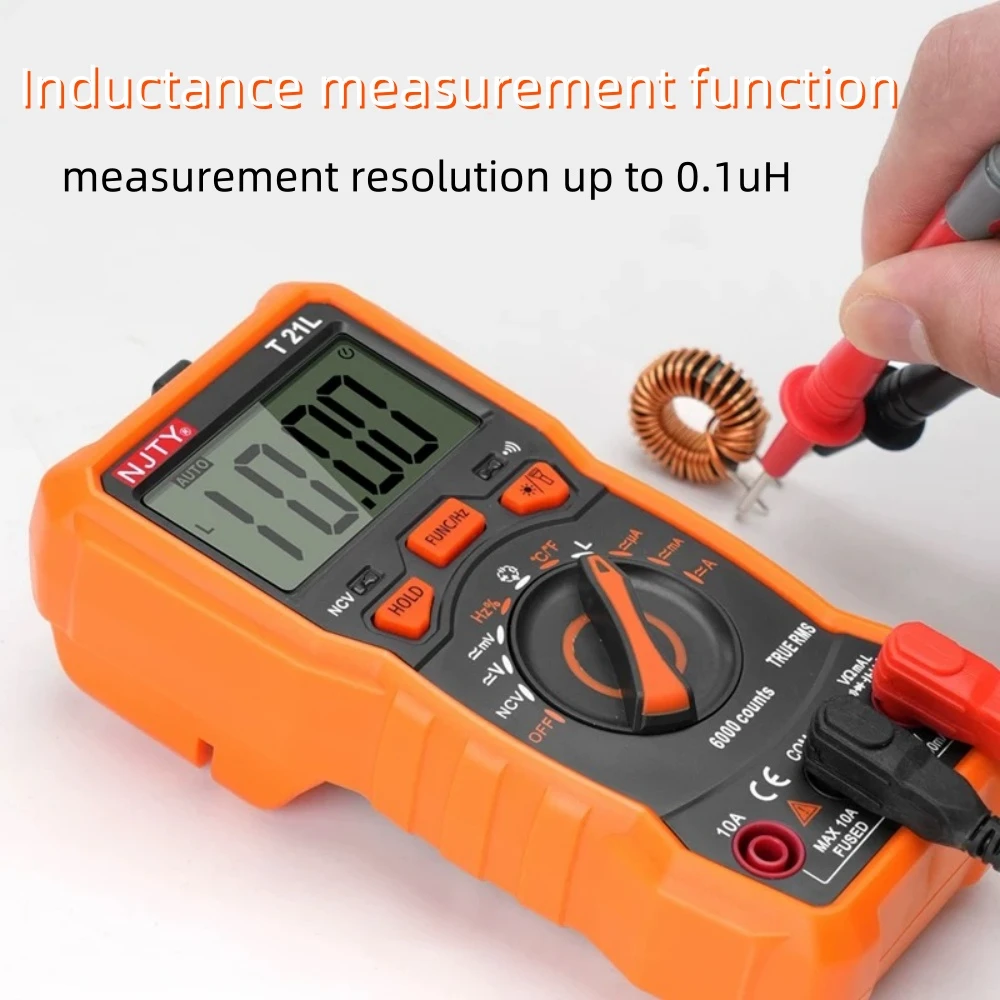

| Inductance | 600uH/6mH/60mH/6H/60H | 0.1uH | ±(1%+5) |
| Temperature | √ | ||
| Diode | √ | ||
| On/off buzzer | √ | ||
| Data retention | √ | ||
| Screen Backlight | √ | ||
| NCV | √ | ||
| Low Voltage display | √ | ||
| Automatic Shutdown | √ | ||
| Max Display | 6000 Counts | ||
| Product size | 147*71*45mm | ||
| Battery | 3*1.5v AAA 7# | ||
