T26 Series:
Technical Datasheet:
| Basical Function | Range | Best Resolution | Basic Accuracy | ||
| T26A | T26B | T26C | |||
| AC Current | 200A/400A | 0.1A | ±(2.5%+5) | ——— | ——— |
| 40A/400A | ——— | ±(2.5%+5) | ——— | ||

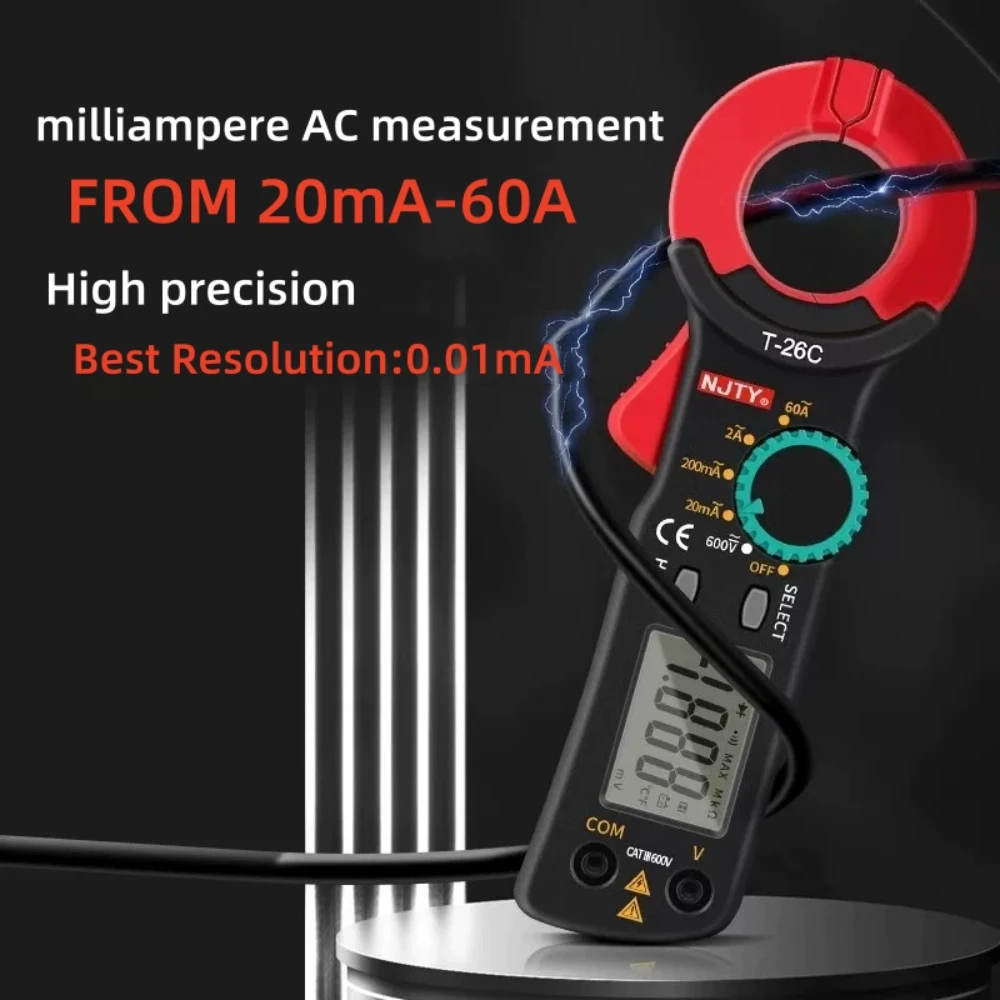

| 20mA/200mA/2A | 0.01mA | ——— | ——— | ±(2.5%+5) | |
| 60A | 100mA | ——— | ——— | ±(3%+8) | |
| AC Voltage | 2V/20V/200V/600V | 1mV | ±(1.2%+5) | ——— | ——— |
| 4V/40V/400V/600V | ——— | ±(1.2%+5) | ——— | ||
| 6000V | 1V | ——— | ——— | ±(1.5%+5) | |
| DC Voltage | 200mV/2V/20V/200V/600/ | 0.1mV | ±(0.8%+5) | ——— | ——— |
| 400mV/4V/40V/400V/600V | ———) | ±(0.8%+5) | ——— | ||
| 600V | 1V | ——— | ——— | ±(1.5%+5) | |
| Resistor | 200/2k/20k/200k/2M/20M | 0.1Ω | ±(1%+3) | ——— | ——— |
| 400/4K/40K/400K/4M/40M | ——— | ±(1%+3) | ——— | ||
| Capacitance | 4nF/40nF/400nF/4uF/40uF/400uF/4mF | 0.01nF | ——— | ±(4%+5) | ——— |
| Temperature | -30℃~1000℃ | 1℃ | ±(3%+5) | ——— | |
| Special Functions | |||||
Auto Ranging | √ | √ | |||
| Diode Detector | Open Circuit Voltage 1.5V | √ | √ | ||
| Continuity Buzzer | R<30Ω | √ | √ | ||
| Low Battery Display | √ | √ | √ | ||
| Data Hold | √ | √ | √ | ||
| Auto Power-off | √ | √ | √ | ||
| Over load Protection | √ | √ | √ | ||
| Input Impedance | ≥10MΩ | √ | √ | √ | |
| Sampling Frequency | 3 times/s | √ | √ | √ | |
Max Display | 1999 | √ | √ | ||
| 3999 | √ | ||||
| Clamp Open Distance | 33mm | √ | √ | √ | |
| General Characteristics | |||||
| Product Color | Iron-gray and orange | √ | √ | ||
| Iron-gray and Red | √ | ||||
| Product N.W | about136g(Battery Excluded) | ||||
| LCD Size | 35*36mm | ||||

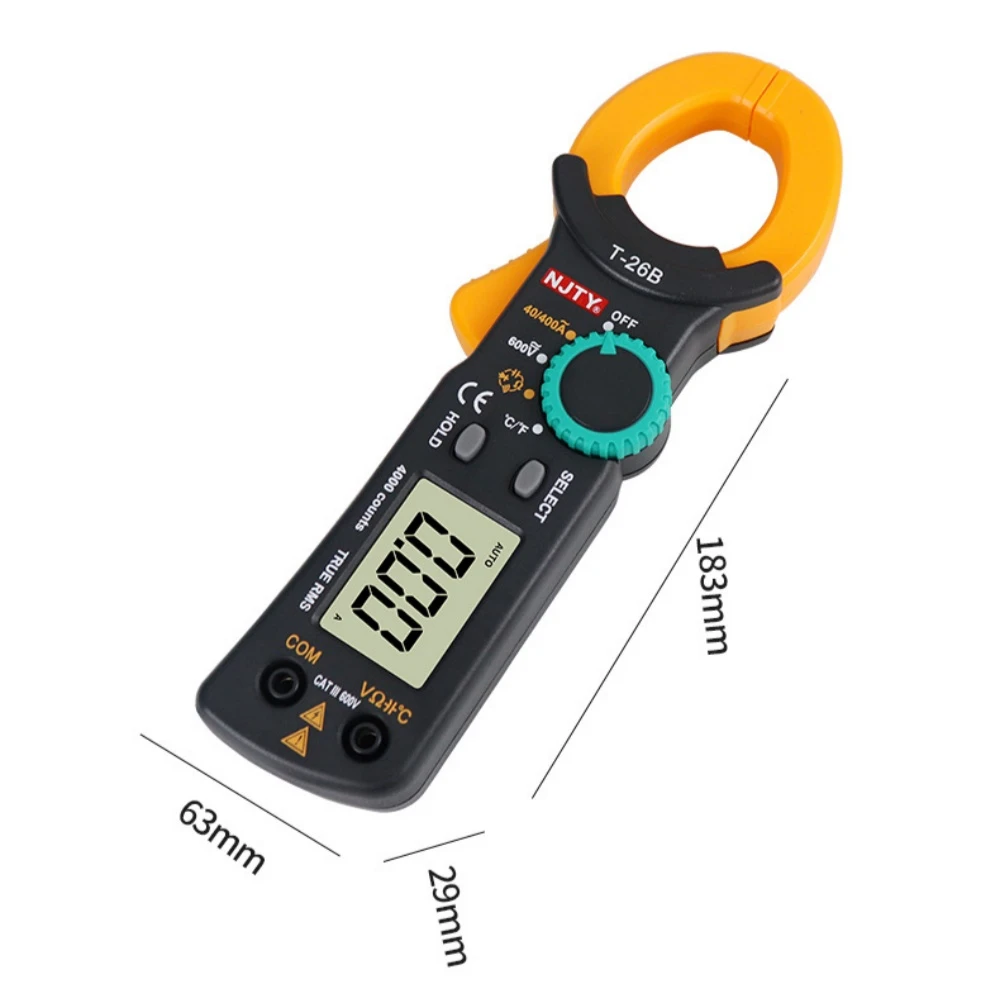

| Product Size | 183*63*29mm | ||||
| Color box Size | 225*105*46mm | ||||
| Battery | 2*1.5V 7# | ||||
| Standard Accessories | color box,handheld bag,English manual, battery,test lead,tempereture probe | √ | √ | ||
| color box,handheld bag,English manual, battery,test lead | √ | ||||
| Quantity | 40pcs | ||||
| Carton Size | 480*465*230mm | ||||
| G.W | about 15KG | ||||
*T26A and T26C are 3 1/2 2000 digits meters,T26B is 33/4 4000 digits meters with exquisite appearance and stable andreliable performance.The whole system is automatic range and provides non-contact (NCV)detection functionswhere measurements cannot be made directly.This product is an intelligent automatic shutdown green product,andequipped with portable belt,easy to use.
*Widely used in home,school,decoration,electrician,electronics,information,communication,petroleum,chemicaland maintenance industries.
