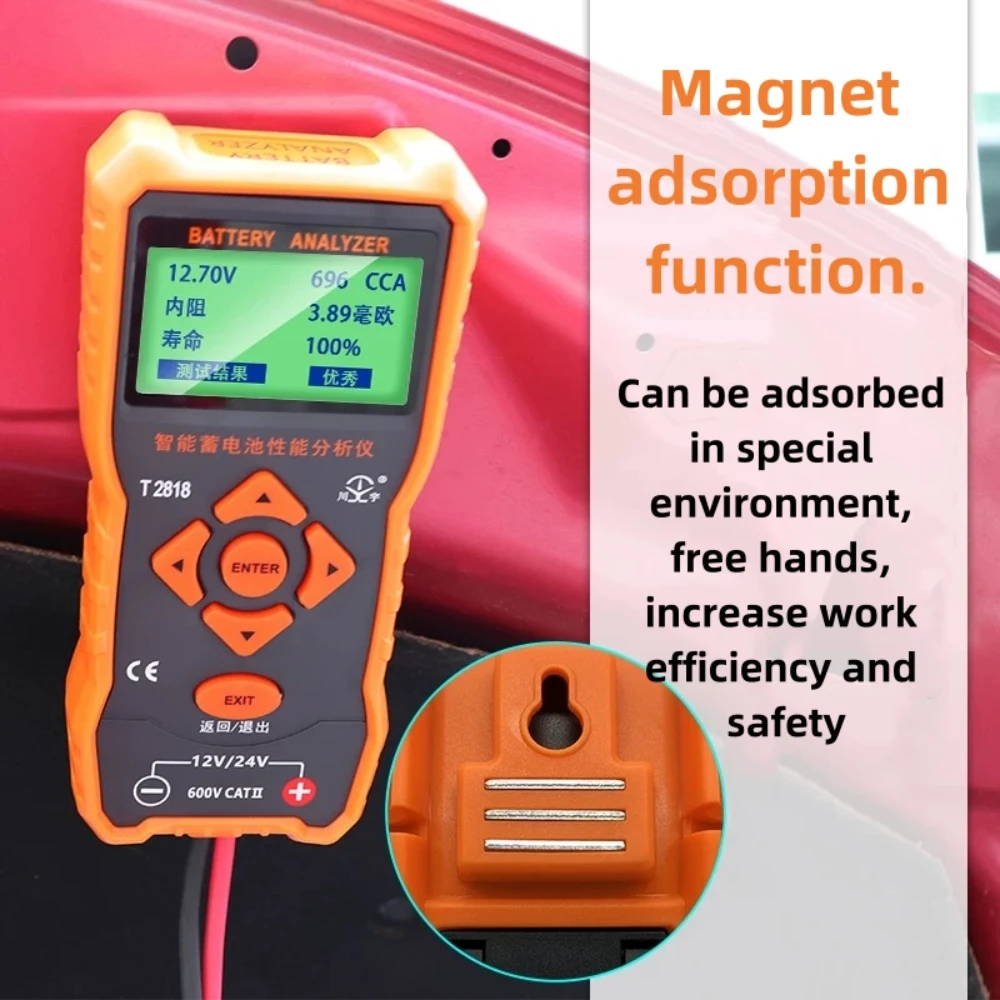

T2818 Intelligent Battery Performance Analyzer:
For batteries without CCA parameters, the simple conversion method is as follows: AH(hour)10≈CCA
Technical Datasheet:
| Battery type: lead-acid battery | |
| Battery Specifications: 12V,24V | |
| Maximum input voltage: less then 36V | |
| Test category: battery starting ability test | |
| Generator Charging System Test | |
| Starter system start-up load test | |
| Measuring range:CCA: 100-1700 | |
| EN:100-1700 | |
| IEC:100-1000 | |
| DIN:100-1000 | |
| Display: Voltage,CCA,internal resistance,life,test results | |
| Measurement time: unlimited | |
| 80V high voltage anti-burning | |
| Test clip bad contact judgment | |
| General Charactristics | |
| Product color | Iron-gray and orange red |
| Product N.W | about 500g |
| Battery | No battery,work with battery power supply |
| LCD Size | 64*40mm |
| Product Size | 195*92*52mm |
| Individual carton size | 250*147*80mm |
| Outer carton size | 450*435*240mm |
| G.W | about 15KG |
| N.W | about 14KG |
| Test line length | about 65CM |

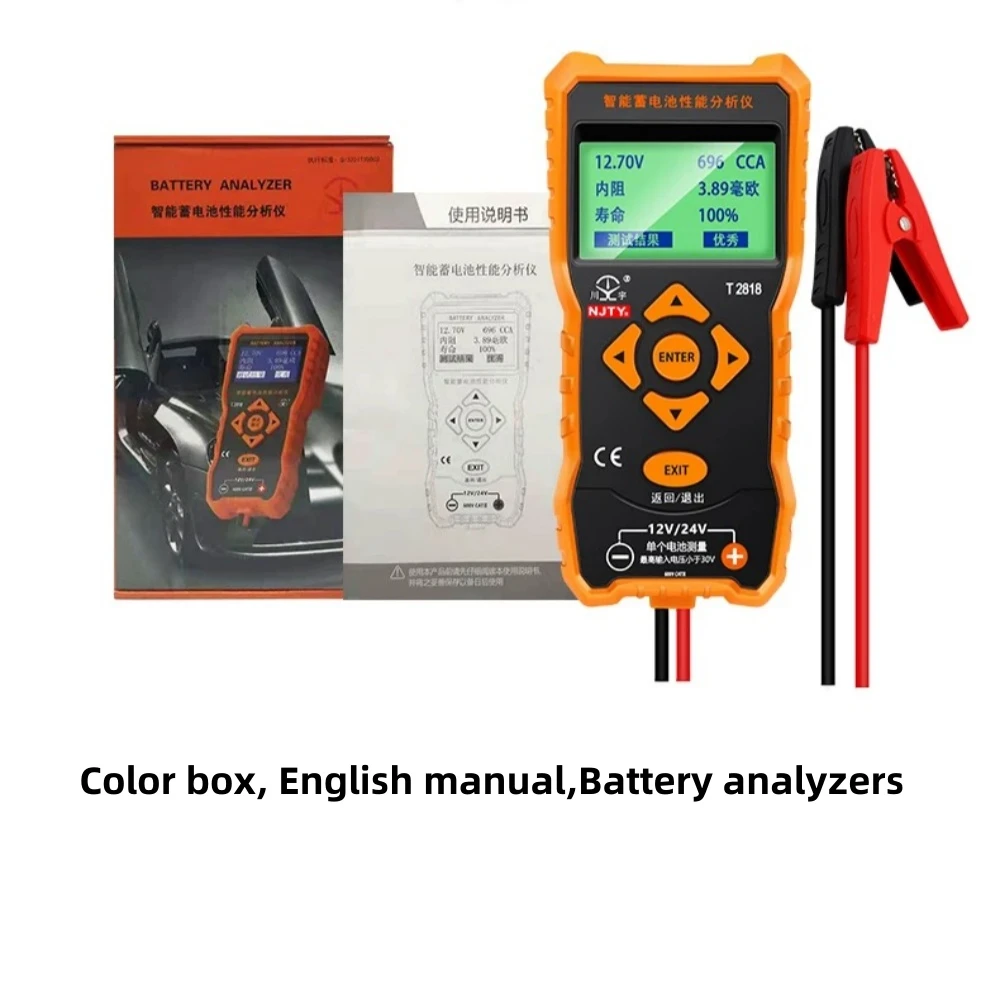

| Standard Accessories | Packing carton,English Manual |
| Quantity | 20pcs |
Model 2808 Intelligent Battery Performance Analyzer is a special instrument for judging the performance of lead-acidbatteries.Measuring range package

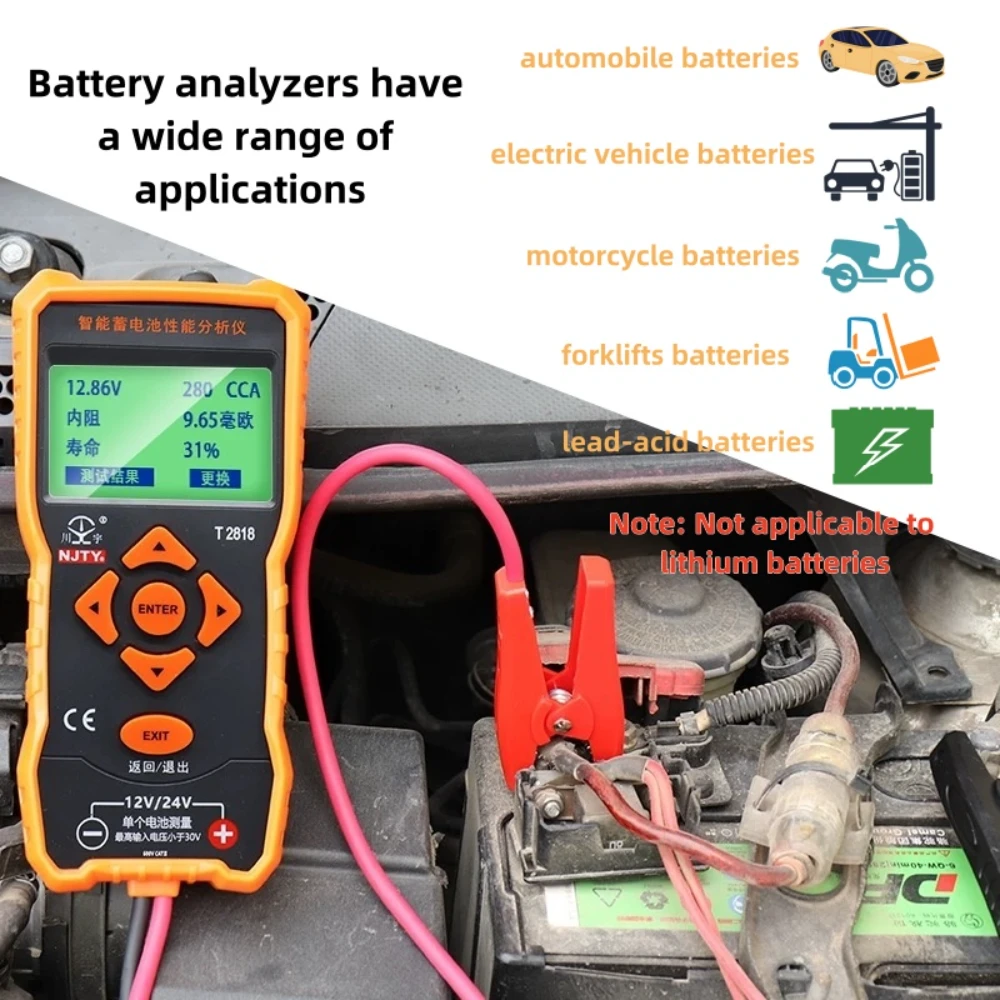

Including various automobile batteries,motorcycle batteries,electric vehicle batteries,forklifts and other special vehiclebatteries and other applications when using lead-acid batteries.
The “generator charging system test”and “starter system start-up load test”are specially set up for the auto repairindustry.
Especially suitable for car,electric vehicle maintenance technicians and home,business vehicle maintenance andrepair,etc.

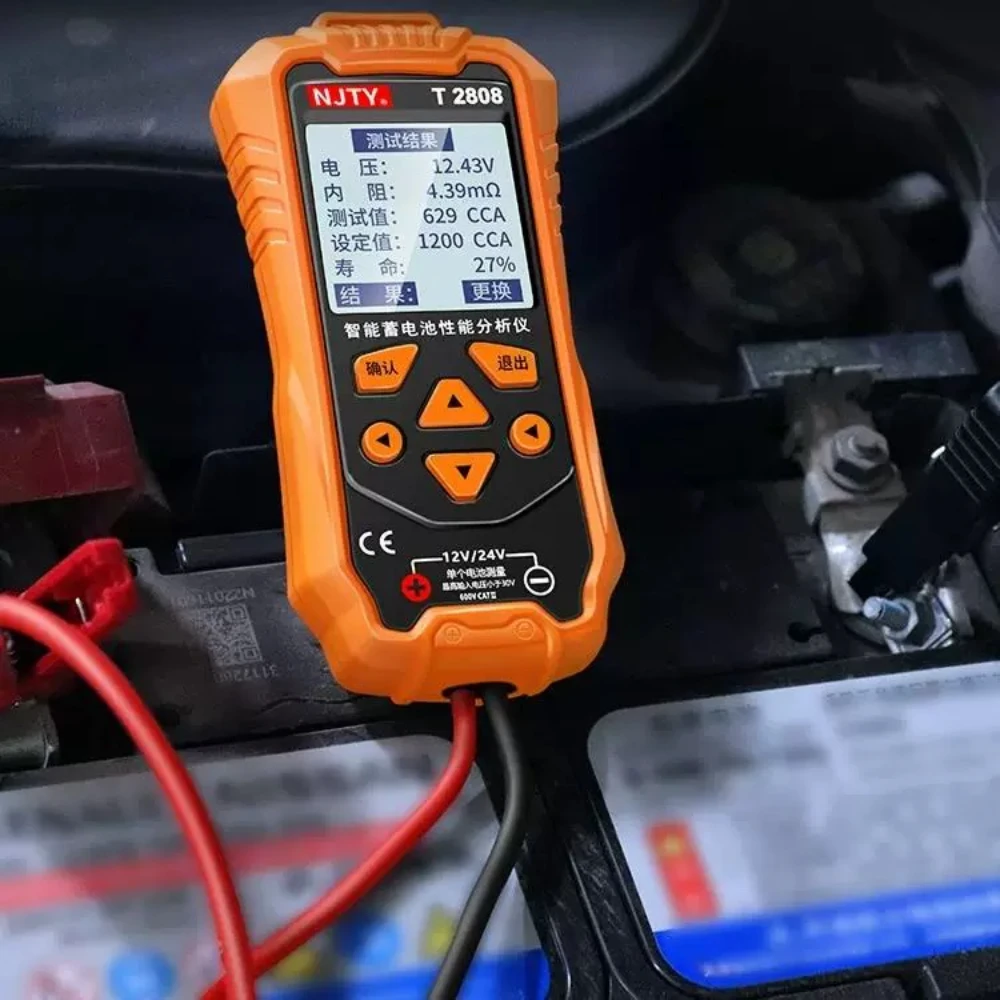

2808 Intelligent Battery Performance Analyzer:
For batteries without CCA parameters, the simple conversion method is as follows: AH(hour)10≈CCA
Technical Datasheet:
| Battery type: lead-acid battery | |
| Battery Specifications: 12V,24V | |
| Maximum input voltage: less then 36V | |
| Test category: battery starting ability test | |
| Generator Charging System Test | |
| Starter system start-up load test | |
| Measuring range:CCA: 100-1700 | |
| EN:100-1700 | |
| IEC:100-1000 | |
| DIN:100-1000 | |
| Display: Voltage,CCA,internal resistance,life,test results | |
| Measurement time: unlimited | |
| 80V high voltage anti-burning | |
| Test clip bad contact judgment | |
| General Charactristics | |
| Product color | Iron-gray and orange red |
| Product N.W | about 500g |
| Battery | No battery,work with battery power supply |
| LCD Size | 45*43mm |
| Product Size | 159*58*33mm |
| Individual carton size | 210*107*64mm |
| Outer carton size | 420*413*198mm |
| G.W | about 14KG |
| N.W | about 13KG |
| Test line length | about 65CM |
| Standard Accessories | Packing carton,English Manual |
| Quantity | 20pcs |
Model 2808 Intelligent Battery Performance Analyzer is a special instrument for judging the performance of lead-acidbatteries.Measuring range package
Including various automobile batteries,motorcycle batteries,electric vehicle batteries,forklifts and other special vehiclebatteries and other applications when using lead-acid batteries.
The “generator charging system test”and “starter system start-up load test”are specially set up for the auto repairindustry.
Especially suitable for car,electric vehicle maintenance technicians and home,business vehicle maintenance andrepair,etc.
OEM&ODM:
